Products Description
This self-service ordering kiosk with floor stand is perfect for self-service ordering and queuing applications. It can be wall-mounted to save space or floor-mounted for greater stability and visibility. At the same time, the built-in POS slot facilitates the fixed POS machine for payment, ensuring safe and convenient transactions.
In terms of configuration, users can choose a built-in 80mm thermal printer or a 58mm thermal printer according to their needs, which is convenient for quick printing of order receipts. If necessary, a built-in sensitive QR code scanner can also be selected to support multiple payment methods.
Main Features
One-stop service
The self-service kiosk has a built-in POS slot, which makes the payment process seamlessly connected with the ordering process. After completing the ordering operation, customers no longer need to find additional payment devices or go to a specific cashier area, and can pay directly on the kiosk. This one-stop service experience greatly improves the efficiency of ordering and payment and reduces the waiting time of customers.
01
Diverse printing sizes
The self-service kiosk provides built-in 80mm and 58mm thermal printers of two different sizes to choose from, providing users with diverse printing demand solutions. The 80mm thermal printer is suitable for printing larger order tickets and can accommodate more information content, such as detailed menu lists, order numbers, restaurant contact information, etc. The 58mm thermal printer is more compact and flexible, suitable for scenes with limited space or for relatively concise printing content.
02
Pixels available
Our self-service kiosk provides 2M/5M/8M cameras with different pixels to meet the needs of different users. For some places that do not require high image quality, you can choose a camera with lower pixels to reduce costs; for places that require higher definition images, such as high-end restaurants or shopping malls with large traffic, you can choose a camera with higher pixels to obtain better monitoring and user experience.
03
Simplified operation process
The built-in NFC module reduces the number of steps for customers in the payment process, making ordering and payment smoother. Customers do not need to carry cash or bank cards, nor do they need to open the mobile app to scan the code to pay. They can complete the payment with just a touch. This simplified operation process improves the user experience and makes customers more willing to choose self-service ordering kiosks to order food.
04
Details

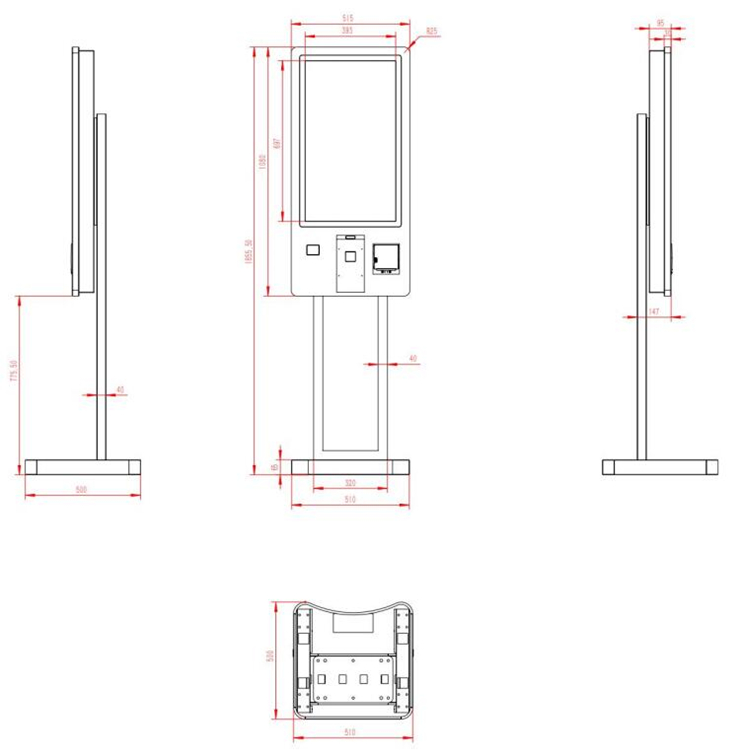

Dimension Drawing
- 21.5"
- 27"
- 32"
- 43"
Download
We offer the following sizes of floor stand ordering machine
21.5 Inch Self-ordering Floorstanding kioskx,HD-215F-T
Display
|
Display Screen |
21.5"/27''/32''/43'' TFT-LCD |
|
Panel Backlight |
LED Backlight |
|
Display Ratio |
16:9 |
|
Color |
16.7M colors/32''Windows Max1.06B |
|
Display area |
21.5''477*268mm 27'' 598*336mm 32''698*393mm 32'' Windows Max698.4×392.85 mm 43'' 941*529mm |
|
Resolution |
1920*1080 |
|
Brightness |
350cd/m2/ 32''Windows Max 360cd/m2 |
|
Contrast |
≥ 1000:1/ 32''Windows Max 3000:1 |
|
View Angle |
89° left and right, up and down/32''Windows Max89/89/89/89 (L/R/U/D) |
|
Screen Response Time |
14ms/32''Windows Less than 6.5ms |
|
Life time |
Over 50000hrs |
Windows motherboard performance
Client can choose from the Pro, Max or Maxplus version for the Windows motherboard, we also can customize other configurations, pls check with sales separately.
|
Configuration options |
Pro version: Intel I3 CPU, 4th Generation, DDR 3 4G RAM, 128G SSD(can expand). |
|
Max version: Intel I5 CPU, 4th Generation, DDR 3 4G RAM, 128G SSD(can expand). |
|
|
Maxplus version: Intel I7 CPU, 4th Generation, DDR 3 4G RAM, 128G SSD(can expand). |
|
|
Graphics card |
Intel® HD Graphics card integrated |
|
WIFI |
Support WIFI dual band 2.4G/5.2G |
|
Windows OS |
Windows7, 8.1, 10,11 trial version; Linux OS |
Windows motherboard I/O Interface
|
USB |
USB 2.0*2,USB3.0*2 |
|
HDMI Output |
HDMI*2 |
|
VGA Output |
VGA*1 |
|
MIC Audio Input |
MIC Audio*1 |
|
Line Audio Output |
Line*1 |
|
Network |
RJ45*1, built-in Gigabit Ethernet |
|
WIFI |
WIFI*1, support 802.11 b/g/n |
Android motherboard performance (optional)
|
Configuration options |
Quad core Cortex-A55,RK3566, 1.8GHz, DDR4- 2G (can customize 4G), EMMC 16G (can expand to 64G) |
|
Quad core Cortex-A55,RK3568, 2.0GHz, DDR4- 2G (can customize 4G), EMMC 16G (can expand to 128G) |
|
|
GPU |
Mali-G52 GPU |
|
Graphic Card |
Integrated graphics card |
|
Network Card |
10/100M adaptive card |
|
WIFI&Bluetooth |
Support 2.4GHz WIFI and Bluetooth 4.2 |
|
4G Function |
Can customize 4G function(optional) |
|
OS |
Android OS 11.0 and above |
Android motherboard I/OInterface
|
USB |
RK3566: USB 3.0*1 USB 2.0*1 RK3568: USB 3.0*2 |
|
HDMI Output |
HDMI OUT*1 |
|
HDMI Input |
HDMI IN*1(optional) |
|
TF card slot |
TF card slot*1 |
|
SIM card slot |
SIM card slot*1 (optional) |
|
Headphone Audio Output |
Headphone Audio Output*1 |
|
Network |
RJ45*1 |
|
WIFI |
WIFI*1, support 802.11 b/g/n |
Windows Max PC Performance
|
CPU |
Intel® Dual core i5 CPU |
|
RAM |
DDR 3, 8G RAM |
|
SSD |
512G SSD (can expand) |
|
Main Board |
Industrial board |
|
Network Port (Windows OS) |
10/100M/1000M adaptive port |
|
WIFI |
Support WIFI |
|
Windows OS |
Windows 7, 8.1, 10 trial version |
Printer
|
Type |
Thermal printer 58mm/80mm |
|
Print width |
576 dots |
|
Resolution |
203DPI |
|
Print Speed |
150mm/s(max) |
|
Paper Width |
79.5 ± 0.5 mm |
|
Paper Thickness |
60~120um |
|
Print Baud Rate |
9600,19200,38400,115200 |
|
Life |
1 million times |
QR Scanner
|
Sensor |
CMOS |
|
Resolution |
640*480 |
|
Communicate Port |
TTL232, RS232, USB(HID,CDC) available (need choose one of them, standard is USB port) |
|
Format |
2D, 1D |
|
Accuracy |
5 mil |
|
Lighting |
White LED |
|
View Angle |
Horizontal: 68°, Portrait: 51° |
NFC (optional)
|
Support Card |
MIFARE One ( M1 ), S50, S70, NTAG2 the X- the X- series, Fudan F08, the I - COD E-the X- and other types of label; the same time, also supports second-generation ID card, the city a cartoon, bank identification card |
|
Supporting Agreement |
ISO15693, ISO14443-A, ISO14443-B, ISO 18092 |
|
Wave Special Rate |
115200 bps |
|
Reading Distance |
20mm~60mm (depending on the tag and antenna) |
|
Interface |
USB\UART TTL |
Camera (optional)
|
Sensor Type |
CMOS |
|
Pixel |
2M/5M/8M pixels (optional) |
|
Resolution |
1920*1080 |
|
Field Angle |
95° |
|
Connect |
USB 2.0 |
Touch
|
Touch Type |
Capacitive Touch |
|
Points |
10 points |
|
Touch Recognition |
> 1.5mm(Finger, touch pen opaque objects) |
|
Scanning Accuracy |
4096*4096 |
|
Scanning Rate |
200Hz |
|
Response Time |
Less than 5ms |
|
Communication |
USB2.0 |
|
Life Time |
Over 80,000,000 touches |
Others
|
Format |
PAL, NTSC |
|
Speaker |
10W*2 |
|
Freestand Racker |
Basement*1 |
|
Voltage |
DC12V/AC100-240V 50/60Hz |
|
Power |
≤ 80W |
|
Product Net Dimension |
1855.50*510*500mm(reference value) |
|
Gross Weight |
25KG |
