Products Description

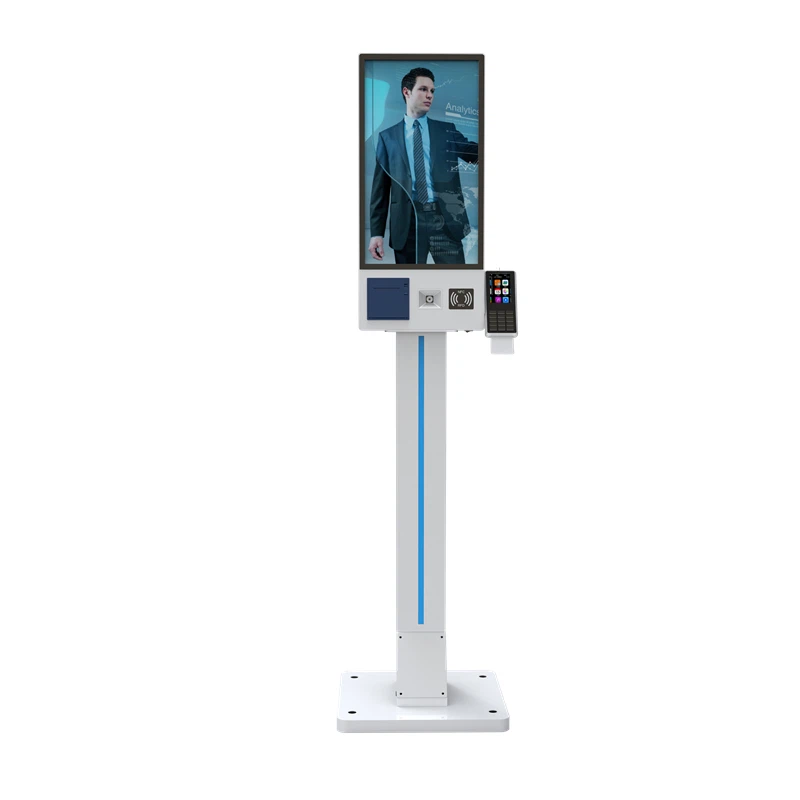

This self-service payment machine is well designed and uniquely shaped, providing users with a convenient self-service ordering solution. It has a 21.5-inch new original panel with LED backlight, presenting a clear and bright picture.
This self-service payment machine uses the Android operating system, and can also be customized to the Windows operating system according to needs, providing users with more choices. It is equipped with a sensitive 10-point capacitive touch function, which operates smoothly and responds quickly, allowing users to easily complete various operations.
Main Features
Instant Printing
Our self-service payment machines have a built-in 58mm thermal printer that can print relevant vouchers immediately after the user completes the payment operation. This provides users with instant feedback, allowing them to clearly see the details of the payment, increasing the transparency and credibility of the transaction. Whether it is a payment receipt, invoice or other voucher, users can get it at the first time without waiting or going to other places to print it.
01
Quick Selection
During the self-service payment process, users need to make various selections and input operations. The sensitive 10-point capacitive touch allows users to quickly and accurately click options, enter information such as amounts, greatly shortening the operation time. Compared with traditional key input or mouse operation, capacitive touch is more efficient and fast, and can meet the needs of users in a fast-paced life.
02
Fast Payment Process
With a built-in POS terminal slot, the self-service payment machine can achieve seamless connection with the POS terminal and speed up the payment process. Users only need to insert a bank card into the POS terminal slot or use a mobile payment device to scan to complete the payment operation, without having to conduct cumbersome cash transactions or find other payment channels. This fast payment process reduces the user's waiting time and improves payment efficiency.
03
Simplified operation process
With the built-in QR code scanner, users do not need to manually enter complex account information or perform tedious operation steps. Just point the QR code on the phone to the scanner to automatically complete the information reading and payment process. This greatly simplifies the operation process of self-service payment, reduces the user's operation difficulty, and improves the user experience.
04
Dimension Drawing
- 21.5"
HD-DS Digital Signage Key Features
※ The software is very easy to operate. As long as the user has an Internet connection, the system can be managed anywhere;
※ The software supports online editing and publishing of programs;
※ The software supports visual production of programs, and users can intuitively see the program effects during the production process. In addition, the software can also preview the program in real time, allowing users to experience the final presentation effect in advance before the program is completed, so as to make timely adjustments and optimizations;
※ The software supports centralized management of the system. In this management mode, although it is centralized control, each device will download the program and play it locally;
※ Based on the network environment, the software can realize centralized control of multiple devices;
※ The software supports remote control functions, including restarting the device, adjusting the volume, and performing system upgrades;
Download
We offer the following sizes of floor stand ordering machine
21.5" Unique shape Kiosk,HD-215U-T Android Pro
Display
|
Display Panel |
21.5" LCD screen with LED backlight |
|
Display Ratio |
16:9 |
|
Color |
16.77M colors |
|
Display Area |
476.064(H)*267.786(V)mm |
|
Resolution |
1920*1080 |
|
Brightness |
450cd/m2 |
|
Contrast |
≥ 1000:1 |
|
View Angle |
178° left and right, up and down |
|
Points Distance |
0.282(H)*0.282(V)mm |
Android Pro Performance
|
CPU |
Quad core Cortex-A55, RK3568 |
|
Frequency |
2.0GHz |
|
RAM |
DDR4- 2G (can customize 4G) |
|
Storage |
EMMC 16G (can expand ) |
|
GPU |
ARM G52 2EE |
|
Graphic Card |
Integrated graphics card |
|
Network Card |
10/100M adaptive card |
|
WIFI&Bluetooth |
Support WIFI and Bluetooth 4.0 |
|
4G Function |
Can customize 4G function(optional) |
|
OS |
Android OS 11.0 and above |
Windows Pro Motherboard Performance
|
Windows Max |
Intel® Core Dual i3 CPU, 4th Generation |
|
RAM |
DDR 3, 4G RAM |
|
SSD |
128G SSD (can expand) |
|
Main Board |
Industrial board |
|
Network Port |
10/100M/1000M adaptive port |
|
WIFI |
Support WIFI dual band 2.4G/5.2G |
|
OS |
Windows 7, 8.1, 10,11 trial version; Linux OS; |
Android Pro Interface
|
USB |
USB 2.0*1, USB 3.0*1/ |
|
HDMI Output |
HDMI*1 |
|
TF Card Slot |
TF card slot*1 |
|
SIM Card Slot |
SIM card slot*1 |
|
Headphone Audio Output |
Headphone Audio Output*1 |
|
Network |
RJ45*1 |
|
WIFI |
WIFI*1, support 802.11 b/g/n |
Windows Pro Interface
|
USB |
USB2.0*2, USB3.0*2 |
|
COM |
COM*1 |
|
HDMI Output |
HDMI*1 |
|
VGA Output |
VGA*1 |
|
MIC Audio Input |
MIC Audio*1 |
|
Line Audio Output |
Line*1 |
|
Network |
RJ45*1, built-in Gigabit Ethernet |
|
WIFI |
WIFI*1, support 802.11 b/g/n |
Printer
|
Type |
Thermal printer 58mm |
|
Print Width |
384 dots |
|
Resolution |
203DPI |
|
Print Speed |
100mm/s(max) |
|
Paper Width |
58 ± 0.5 mm |
|
Paper Thickness |
56~105μm |
|
Interface Type |
RS232 serial interface |
|
Life Time |
1 million times |
QR Scanner
|
Sensor |
CMOS |
|
Resolution |
640*480 |
|
Communicate Port |
TTL232, RS232, USB(HID,CDC) available (need choose one of them, standard is USB port) |
|
Format |
2D, 1D |
|
Accuracy |
5 mil |
|
Lighting |
White LED |
|
View Angle |
Horizontal: 68°, Portrait: 51° |
NFC
|
Support Card |
MIFARE One ( M1 ), S50, S70, NTAG2 the X- the X- series, Fudan F08, the I - COD E-the X- and other types of label; the same time, also supports second-generation ID card, the city a cartoon, bank identification card |
|
Voltage Range |
3.3 ~ 5.0 V |
|
Supporting Agreement |
ISO1569 3 , ISO14443-A , ISO14443-B , ISO 18092 |
|
Working Current |
30 mA~ 130 mA |
|
Operating Temperature |
-20~85 ℃ |
|
Wave Special Rate |
115200 bps |
|
Reading Distance |
20mm~60mm (depending on the tag and antenna) |
|
See Door Dog |
Built-in hardware watchdog to prevent crashes |
Capacitive Touch
|
Touch Type |
Capacitive touch, G+G |
|
Points |
10 points |
|
Glass Cover |
Tempered glass cover |
|
Response Time |
Less than 5ms |
|
Resolution |
32767 * 32767 |
|
Position Accuracy |
±1.5mm |
|
Communication |
USB2.0 |
|
Life Time |
Over 80,000,000 touches |
Others
|
Format |
PAL, NTSC |
|
Color |
Black, White, can customize |
|
Gross Weight |
30KG |
|
Voltage |
220-240V 50/60Hz |
|
Power |
≤ 60W |
|
Working Temperature |
0－ 40 ℃ |
HD-DS Digital Signage Software
Program Interface Edited by HD-DS Software
