HDFocus Interactive Whiteboard for Education
Makes Classroom Teaching Better
As an interactive whiteboard supplier integrating R&D and customization, HDFocus has developed interactive whiteboards suitable for classrooms to solve classroom teaching problems. We have three products that can be used in educational environments, namely the CY series, the CK series and CM series. Our interactive whiteboards size range from 55 inches to 110 inches. In order to meet the needs of different educational environments, we can also provide customized services, such as customizing logos, brightness, shell materials, etc.
Our Interactive Whiteboards Display
Interactive Touch Smart Board Size 55" / 65" / 75" / 85'' / 86" / 98" / 105'' / 110" /. Click on the product model for more specifications.
Interactive Whiteboard Technical Specifications
Our all-in-one interactive smart boards range from 55inch to 110inch, providing various interactive display solutions for business and education. All the finished products are 100% subjected to at least a 48-hour aging test and a strict QC process before shipping.
| HDFocus IFPD Specification | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Display | Screen Size | 55" | 65" | 75" | 85" | 86" | 98" | 105" | 110" |
| Download | Download | Download | Download | Download | Download | Download | Download | ||
| Panel back light | TFT-LCD Module with DLED backlight | ||||||||
| Panel Protection | 7H Tempered Anti-Glare glass | ||||||||
| Aspect Ratio | 16:09 | 21:09 | 16:09 | ||||||
| Color | 1.07B colors (10 bit) | 8 bit/16.7 Million | 1.07b colors (8 bit) | ||||||
| Display area | 1208.6*677.9mm | 1428.2*803.18mm | 1645.96*925.52mm | 1870.16*1051.52mm | 1892.16*1064.22mm | 2157*1212.4mm | 2446.96*1030.82mm | 2433.56*1367.42mm | |
| Resolution | 3840*2160 | ||||||||
| Brightness | 350cd/m2 | 380cd/m2 | 450cd/m2 | ||||||
| Contrast | 1400:01:00 | 1200:01:00 | |||||||
| Touch | Touch Type | Infra-red | |||||||
| Accessories | Remote controller*1, Racker*1, Free Touch Pen*2,User Manual*1, Power cable*1 | ||||||||
| Other | Net Dimension | 1257.7*745.2*103.5mm | 1486.08*901.26*88.9mm | 1708.24*1026.49*89.1mm | 1954.44*1165.2*89.1mm | 1954.44*1165.2*89.1mm | 2218.24*1318.1*100.81mm | 2508.84*1156.36*103.6mm | 2502.04*1498.66*103mm |
| Package Dimension | 1366.6*185*891.5mm | 1600*205*1001.5mm | 1846*215*1180mm | 2092*215*1319mm | 2092*215*1319mm | 2257*215*1478mm | 2646*215*1294mm | 2680*270*1655mm | |
| Net Weight | 23.5KG | 37.2KG | 54KG | 65.8KG | 65.8KG | 89KG | 89.5KG | 100KG | |
| Gross Weight | 30.5KG | 56KG | 68.5KG | 83KG | 83KG | 110KG | 110KG | 130KG | |
| Speaker | 2*15W speakers (Front) | 2*15W+2*20W speakers (Front) | |||||||
| VESA | 400*400mm | 400*500mm | 400*600mm | 400*800mm | 400*800mm | 400*1000mm | 800*1000mm | ||
| Color | Matte gran and Black | Top and bottom in Iron gray, left and right in Black | Matte gray and Black | Top and bottom in Iron gray, left and right in Black | |||||
| Voltage | 100 V ~ 240 V, 50-60 Hz | ||||||||
| Power | ≤ 120W | ≤ 200W | ≤ 270W | ≤ 330W | ≤ 650W | ||||
| Working Temperature | '-10－ 55 ℃ | ||||||||
| Android Configuration | |||||||||
| Main Configuration | Version | Android Pro | Android Max | Android Ultra | |||||
| CPU | Quad-core ARM Cortex-A73 | RK3588 Quad-core A76 + Quad-core A55 |
Quad-core ARM Cortex-A73 | ||||||
| GPU | Mali G52 MC1 | Mali-G610 MC4 | Mali G52 MC1 | ||||||
| RAM | 4GB DDR4 | 8GB DDR4 | 6GB/8GB DDR4 | 8GB DDR4 | |||||
| ROM | 32G EMMC | 128GB | |||||||
| WIFI | IEEE Std. 802.11a/b/g/n/ac/ax Buidl In 2.4G&5G module |
IEEE802.11 a/b/g/n/ac/ax 2.4/5 GHz, support WIFI6 | IEEE Std. 802.11a/b/g/n/ac/ax Buidl In 2.4G&5G module |
||||||
| Bluetooth | Bluetooth2.1+EDR/3.0/4.x/5.2/5.3/5.4 | Support, can receive signal up to 12M. | Bluetooth2.1+EDR/3.0/4.x/5.2/5.3/5.4 | ||||||
| Android OS | Android 14.0 | Android 13.0(Can customize to Android 15.0) | Android 14.0 | ||||||
| Input/ output Interface | Front I/O Interface | USB*3, HDMI IN*1, TOUCH*1, TYPE-C*1 | USB*2, HDMI IN*1, TOUCH*1, TYPE-C*1 | USB*3, HDMI IN*1, TOUCH*1, TYPE-C*1 | |||||
| Version | Android 9679 Pro | Android 9679 Max | Android 9679 Maxplus | ||||||
| Rear I/O Interface | USB*2 | USB*3 | USB*2 | ||||||
| HDMI IN*4 | HDMI IN*3 | HDMI IN*4 | |||||||
| RS232*1 | |||||||||
| Mic IN*1 | / | Mic IN*1 | |||||||
| PC Audio IN*1 | |||||||||
| RJ45(100M)*1 | RJ45(100M)*1 | RJ45(1000M)*2 | RJ45(1000M)*1 | RJ45(1000M)*2 | |||||
| / | / | DP IN*1 | |||||||
| Type C*1 | |||||||||
| TF card slot*1 | / | TF card slot*1 | |||||||
| VGA IN*1 | |||||||||
| Rear Output Port | Touch OUT*1 | Touch OUT*1 | Touch OUT*2 | Touch OUT（USB3.0)*3 | Touch OUT*2 | ||||
| LINE OUT*1 | |||||||||
| Optical OUT*1 | |||||||||
| / | / | HDMI OUT*1 | |||||||
| / | Type-C OUT*1 | / | |||||||
| / | RJ45(1000M)*1 | / | |||||||
| Windows OPS Configuration | |||||||||
| Main Configuration | Sky Lake-S 6th Gen processors | I3-6th Ge. | I5-6th Ge. | I7-6th Ge. | |||||
| DDR4/RAM | 4G/8G/16G/32G (Optional) | DDR4/RAM 4G/8G/16G/32G/64G (Optional) | 4G/8G/16G/32G (Optional) | ||||||
| Hard disk/SSD | SSD 128G/256G /512G/1TB (HDD 1TB Optional) | ||||||||
| Graphics card | Intel® HD Graphics card 530 integrated | ||||||||
| WIFI & BT | 1*M.2 2230 for Wifi+BT | IEEE802.11an 2.4GHz+5G, BT4.2 | 1*M.2 2230 for Wifi+BT | ||||||
| Windows OS | Win 10/11, Linux, Chromium OS | Windows 8.1/10/11 trial version, Linux | Win 10/11, Linux, Chromium OS | ||||||
| Click to View More | |||||||||
Installation Methods of Our Interactive Whiteboard
Interactive Board With Mobile Bracket
Wall-Mounted Interactive Board
Push Pull Smart Blackboard
Features of Our Interactive Whiteboard for Classroom
Annotation
Our interactive whiteboard allows teachers to write, mark, circle, and perform other operations directly on the whiteboard interface.
QR Code Share
Teachers can easily scan the QR code to save course content.
20-point touch
Every touch made by the teacher on the whiteboard can be responded immediately, making it easy to operate and use.
4K Resolution
The 4K resolution panel provides students with rich details, vivid colors and stunning picture quality in their teaching content.
Rich Teaching Tools
Our whiteboard can provide teachers with a variety of teaching tools, such as rulers, tables, protractors, etc., to facilitate teachers' teaching.
Multi Device Mirroring
Supports Android/ iOS/ Windows/ MAC and MAX systems, and can project screens to 8 devices at the same time.
Multi-person Split-screen Collaboration
Our whiteboard can be divided into 2-4 independent areas for students to collaborate in parallel, making it convenient for teachers to arrange students for group learning, teacher-student co-creation, and other operations.
Anti-glare Glass
Our all in one whiteboard screen has built-in anti-glare glass, which can effectively reduce the reflection on the screen surface and make the viewing angle wider, ensuring that all students in the classroom can see the screen content.
Teaching Solutions--Digital Learning
Interactive Whiteboard for K-12
Our education digital whiteboards can provide students with a good learning environment, allowing them to stimulate their learning thinking through writing, drawing, and collaboration on the screen. For abstract learning knowledge, teachers can also assist in teaching through pictures, videos, and other methods.
Interactive Whiteboard for Training Institutions
In some training institutions, compared with traditional whiteboards, interactive digital whiteboards can provide students with personalized learning guidance, and can also conduct online teaching through remote video conferencing, thus breaking resistance restrictions.
Interactive Whiteboard for Library
The integrated interactive whiteboard in the library can display book resources, new book recommendations, etc. It can also support user interactive learning and provide users with diversified learning resources.
School Interactive Whiteboard Customer Cases
Malaysian Primary School

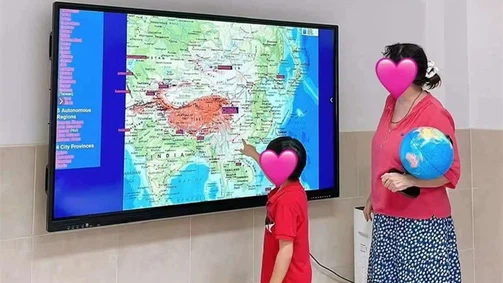

Singapore Preschool
Central Java School, Indonesia
San Jose School, California
Why Choose HDFocus As Your Interactive Whiteboard Manufacturer
Customizable Services
Customizable services: As an interactive whiteboard manufacturer focusing on R&D and customization, we can provide customers with customized services according to different educational environments, such as size, shell material, protection level, etc., to meet customers' personalized needs.
Learn More
Rigorous Production Process
Rigorous production process: Our smart interactive whiteboard products are carefully assembled by a professional technical team at every step from raw materials to final products. In addition, we also conduct a 72-hour aging test before shipment to ensure safe delivery to customers.
Learn More
Qualification Certificate
Qualification certificate: All our products have passed CE, FCC, TELEC, ROHS, PSE, HDMI and ENERGY STAR certification, providing customers with safe and reliable products.
Learn More
One-stop Service
One-stop service: We have engineers and sales teams to provide services to customers before and after sales, and provide customers with online and offline product training. In addition, we also provide a one-year warranty to solve product quality problems for customers.
Learn More
FAQ
Q: Are your smart touch whiteboard samples free?
Q: What is the warranty coverage for your educational interactive whiteboards?
Q: Can I customize the logo on the product?
Q: What is the price of your classroom interactive whiteboard?
