2K Video Wall Controller Solution (1.5U/2.5U)
Our 2K LCD video wall controllers can drive multiple screens. Whether you need to control a control room, corporate presentation, or command center, our video wall controllers offer unmatched performance and flexibility to find the perfect LCD video wall controller j solution for you.
Product Outlook
Main Features
Support 1.5U structure
The 1.5U controller supports up to 8 inputs and 16 outputs. It can process multiple signal sources at the same time and output them to different areas on the splicing wall, realizing complex screen layout and multi-screen display. Users can also customize the number of inputs and outputs, interface type, signal format, etc. according to specific needs.
Support 2.5U structure
The controller with 2.5U structure provides a variety of options for input and output configuration, supporting up to 16 inputs and 32 outputs. It can receive video signals from multiple signal sources at the same time and output the processed signals to multiple display devices. It is suitable for scenes that need to display a large amount of information or multiple pictures.
Support multiple windows, overlay, window roaming and other functions
The processor can display multiple independent windows on the screen at the same time, each window can present different content sources, and allow different windows or content to be displayed in superposition. By adjusting parameters such as overlay order and transparency, various special display effects can be achieved, and windows can also be moved freely on the screen without being restricted by fixed positions.
Plug-in design
The main modules such as input and output boards and control boards adopt plug-in design. You only need to insert the corresponding board to increase the input or output port without replacing the entire processor. This plug-in card design also facilitates the individual maintenance and replacement of each module. If a module fails, the faulty board can be directly unplugged for repair or replacement without affecting the normal operation of other modules, greatly reducing the time and cost of maintenance.
Highly customizable
Supports 2,000 custom scenes to meet a variety of different usage needs and specific environmental requirements. Users can finely set the parameters of each scene, such as window layout, signal source selection, display effects, etc. according to their unique needs and preferences, to achieve a highly personalized display solution.
Wide operating system compatibility
Supports multiple operating systems such as Windows, iOS, Linux, etc., allowing users of different devices to use the processor conveniently. Whether it is a personal computer or notebook using the Windows operating system, or a device with the iOS system, or a server or workstation with the Linux operating system, it can be seamlessly connected and interacted with the video wall processor.
HDMI Input/Output Card Module
Tips: HDMI Cards can be added according to user needs(at least 4 HDMI Input and output). Each HDMI Card has 4 HDMI interfaces, including HDMI IN and HDMI OUT.
|
HDMI Input card |
HDMI IN*4(single card ) |
|
HDMI Output |
HDMI*4(single card) |
|
Input Resolution |
Maximum support 1920*1080@60Hz input and output |
|
Output Resolution |
1920*1080@60Hz, compatible with 1080i/720p/576p/576i/480p/480i/3D |
Control Card Module
|
Control card |
Standard card for the video wall controller |
|
Control Ports |
RS232 IN*1 RS232 OUT*1 |
|
Network |
RJ45*1 |
|
Audio Output |
1 x 3.5mm audio jack |

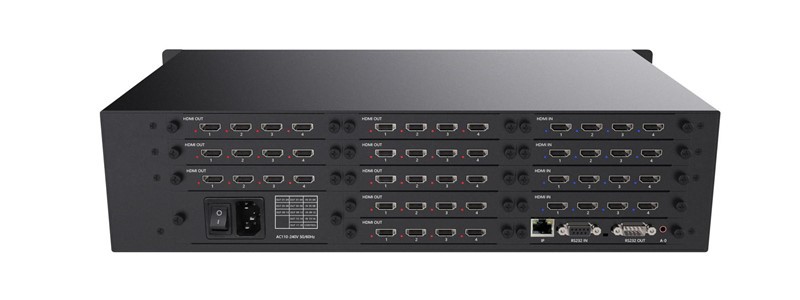

Main Case
● 1.5U Main case freely support different HDMI input and output card module.
● 1.5U Main case maximum support 8 HDMI inputs and 16 HDMI outputs.
● 2.5U Main case freely support different HDMI input and output card module.
● 2.5U Main case maximum support 16 HDMI inputs and 32 HDMI outputs, or maximum support 8 HDMI inputs and 40 HDMI outputs
Splicing Control Software
● Supports simultaneous operations by multiple users and different terminals, and synchronizes data in real time;
● Supports cross-platform control of various operating systems such as Kirin, Hormony, Windows, iOS, Android, and Linux;
● Support third-party serial port devices such as custom protocol control and ring-out control screen;
● Upgrade and backup functions, support device data import and export, and realize data backup function;
● Supports automatic scheduled tours of scenes, and you can choose whether each scene participates in automatic tours, which is convenient for applications in monitoring and exhibition display fields;
● Supports automatic scheduled polling of channels, and multiple inputs can be selected for automatic scheduled switching on a certain input without affecting the splicing and picture of other output interfaces;
● Standard WEB cross-platform control, customized logo, software name, supports automatic equipment patrol function, and multi-terminal real-time synchronized operation function;
