Interactive Whiteboard for Business Takes Collaboration to New Level
As a smart interactive whiteboard supplier with 10+ years of industry experience, HDFocus' interactive digital whiteboards can provide customized meeting collaboration solutions for corporate teams. Our products for conference collaboration mainly include the CM series, CK series and CY series. The interactive whiteboards sizes range from 55 inches to 100 inches, and are mainly suitable for corporate conference rooms, training rooms, medical consultation rooms and other places. Teams can collaborate and edit at any time, and can also communicate remotely with members across regions, thus breaking down distance barriers.
Check out Our Top Interactive Whiteboard for Business
Interactive Whiteboard Technical Specifications
Our all-in-one interactive smart boards range from 55inch to 110inch, providing various interactive display solutions for business and education. All the finished products are 100% subjected to at least a 48-hour aging test and a strict QC process before shipping.
| HDFocus IFPD Specification | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Display | Screen Size | 55" | 65" | 75" | 85" | 86" | 98" | 105" | 110" |
| Download | Download | Download | Download | Download | Download | Download | Download | ||
| Panel back light | TFT-LCD Module with DLED backlight | ||||||||
| Panel Protection | 7H Tempered Anti-Glare glass | ||||||||
| Aspect Ratio | 16:09 | 21:09 | 16:09 | ||||||
| Color | 1.07B colors (10 bit) | 8 bit/16.7 Million | 1.07b colors (8 bit) | ||||||
| Display area | 1208.6*677.9mm | 1428.2*803.18mm | 1645.96*925.52mm | 1870.16*1051.52mm | 1892.16*1064.22mm | 2157*1212.4mm | 2446.96*1030.82mm | 2433.56*1367.42mm | |
| Resolution | 3840*2160 | ||||||||
| Brightness | 350cd/m2 | 380cd/m2 | 450cd/m2 | ||||||
| Contrast | 1400:01:00 | 1200:01:00 | |||||||
| Touch | Touch Type | Infra-red | |||||||
| Accessories | Remote controller*1, Racker*1, Free Touch Pen*2,User Manual*1, Power cable*1 | ||||||||
| Other | Net Dimension | 1257.7*745.2*103.5mm | 1486.08*901.26*88.9mm | 1708.24*1026.49*89.1mm | 1954.44*1165.2*89.1mm | 1954.44*1165.2*89.1mm | 2218.24*1318.1*100.81mm | 2508.84*1156.36*103.6mm | 2502.04*1498.66*103mm |
| Package Dimension | 1366.6*185*891.5mm | 1600*205*1001.5mm | 1846*215*1180mm | 2092*215*1319mm | 2092*215*1319mm | 2257*215*1478mm | 2646*215*1294mm | 2680*270*1655mm | |
| Net Weight | 23.5KG | 37.2KG | 54KG | 65.8KG | 65.8KG | 89KG | 89.5KG | 100KG | |
| Gross Weight | 30.5KG | 56KG | 68.5KG | 83KG | 83KG | 110KG | 110KG | 130KG | |
| Speaker | 2*15W speakers (Front) | 2*15W+2*20W speakers (Front) | |||||||
| VESA | 400*400mm | 400*500mm | 400*600mm | 400*800mm | 400*800mm | 400*1000mm | 800*1000mm | ||
| Color | Matte gran and Black | Top and bottom in Iron gray, left and right in Black | Matte gray and Black | Top and bottom in Iron gray, left and right in Black | |||||
| Voltage | 100 V ~ 240 V, 50-60 Hz | ||||||||
| Power | ≤ 120W | ≤ 200W | ≤ 270W | ≤ 330W | ≤ 650W | ||||
| Working Temperature | '-10－ 55 ℃ | ||||||||
| Android Configuration | |||||||||
| Main Configuration | Version | Android Pro | Android Max | Android Ultra | |||||
| CPU | Quad-core ARM Cortex-A73 | RK3588 Quad-core A76 + Quad-core A55 |
Quad-core ARM Cortex-A73 | ||||||
| GPU | Mali G52 MC1 | Mali-G610 MC4 | Mali G52 MC1 | ||||||
| RAM | 4GB DDR4 | 8GB DDR4 | 6GB/8GB DDR4 | 8GB DDR4 | |||||
| ROM | 32G EMMC | 128GB | |||||||
| WIFI | IEEE Std. 802.11a/b/g/n/ac/ax Buidl In 2.4G&5G module |
IEEE802.11 a/b/g/n/ac/ax 2.4/5 GHz, support WIFI6 | IEEE Std. 802.11a/b/g/n/ac/ax Buidl In 2.4G&5G module |
||||||
| Bluetooth | Bluetooth2.1+EDR/3.0/4.x/5.2/5.3/5.4 | Support, can receive signal up to 12M. | Bluetooth2.1+EDR/3.0/4.x/5.2/5.3/5.4 | ||||||
| Android OS | Android 14.0 | Android 13.0(Can customize to Android 15.0) | Android 14.0 | ||||||
| Input/ output Interface | Front I/O Interface | USB*3, HDMI IN*1, TOUCH*1, TYPE-C*1 | USB*2, HDMI IN*1, TOUCH*1, TYPE-C*1 | USB*3, HDMI IN*1, TOUCH*1, TYPE-C*1 | |||||
| Version | Android 9679 Pro | Android 9679 Max | Android 9679 Maxplus | ||||||
| Rear I/O Interface | USB*2 | USB*3 | USB*2 | ||||||
| HDMI IN*4 | HDMI IN*3 | HDMI IN*4 | |||||||
| RS232*1 | |||||||||
| Mic IN*1 | / | Mic IN*1 | |||||||
| PC Audio IN*1 | |||||||||
| RJ45(100M)*1 | RJ45(100M)*1 | RJ45(1000M)*2 | RJ45(1000M)*1 | RJ45(1000M)*2 | |||||
| / | / | DP IN*1 | |||||||
| Type C*1 | |||||||||
| TF card slot*1 | / | TF card slot*1 | |||||||
| VGA IN*1 | |||||||||
| Rear Output Port | Touch OUT*1 | Touch OUT*1 | Touch OUT*2 | Touch OUT（USB3.0)*3 | Touch OUT*2 | ||||
| LINE OUT*1 | |||||||||
| Optical OUT*1 | |||||||||
| / | / | HDMI OUT*1 | |||||||
| / | Type-C OUT*1 | / | |||||||
| / | RJ45(1000M)*1 | / | |||||||
| Windows OPS Configuration | |||||||||
| Main Configuration | Sky Lake-S 6th Gen processors | I3-6th Ge. | I5-6th Ge. | I7-6th Ge. | |||||
| DDR4/RAM | 4G/8G/16G/32G (Optional) | DDR4/RAM 4G/8G/16G/32G/64G (Optional) | 4G/8G/16G/32G (Optional) | ||||||
| Hard disk/SSD | SSD 128G/256G /512G/1TB (HDD 1TB Optional) | ||||||||
| Graphics card | Intel® HD Graphics card 530 integrated | ||||||||
| WIFI & BT | 1*M.2 2230 for Wifi+BT | IEEE802.11an 2.4GHz+5G, BT4.2 | 1*M.2 2230 for Wifi+BT | ||||||
| Windows OS | Win 10/11, Linux, Chromium OS | Windows 8.1/10/11 trial version, Linux | Win 10/11, Linux, Chromium OS | ||||||
| Click to View More | |||||||||
Choose the Right Smart Board Size for Your Meeting
Meeting room smart board size solution makes meetings more efficient
5㎡-15㎡ Small Room
55inch smart whiteboard is suitable for meeting rooms with 1-5 people.

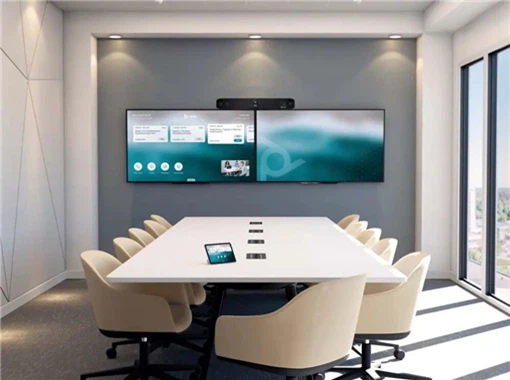

20㎡-35㎡ Medium Room
65 inch interactive whiteboard suitable for rooms with 5-10 people
30㎡-50㎡ Large Room
75 inch interactive whiteboard is suitable for large rooms with 15-30 people.
Function of Our Interactive Whiteboard for Meeting

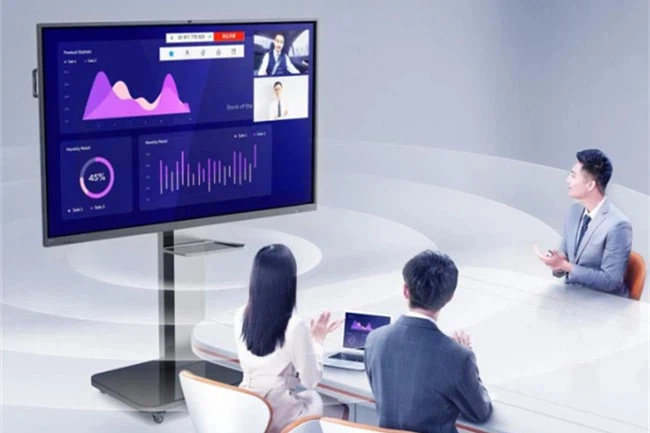

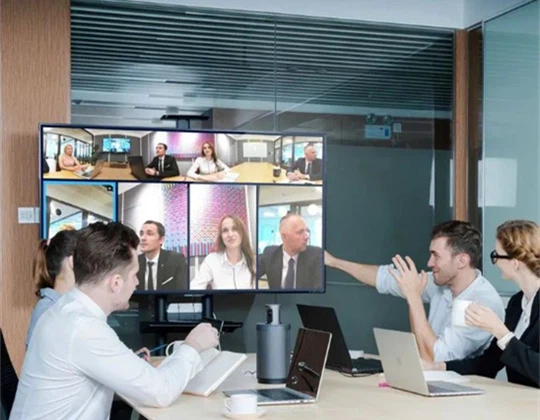

Remote Conferencing and Collaboration
Our meeting interactive whiteboard allows teams to hold remote meetings, allowing members who cannot be present on site to participate in meetings across regions, thus breaking down distance barriers.
Multiple Devices Wireless Screen
Devices with various operating systems such as Windows, MacOS, iOS, and Android can project screens on the smart whiteboard, and up to 8 devices can be supported simultaneously, making it very suitable for mixed team collaboration and communication.
Support Multi-person Collaboration
Our multi-touch interactive whiteboard uses 20-point touch technology, which can support multiple people to write and draw on the screen at the same time. This is very suitable for designers, architects and other corporate employees who need to draw designs to brainstorm, thereby improving work efficiency.

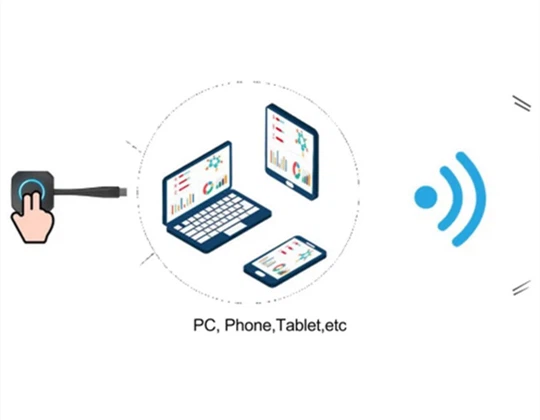

One-click Screen Projection
Our all in one interactive whiteboards are very convenient for collaborative communication in meetings. Teams only need to plug the wireless transmitter into the computer, or scan the QR code on the screen with their mobile phone to project the content onto the screen.
Support Multiple File Formats
Our interactive whiteboard is compatible with multiple file formats such as PPT, PDF, Word, Excel, pictures, videos, etc., and supports direct modification of PPT text to improve collaboration efficiency.

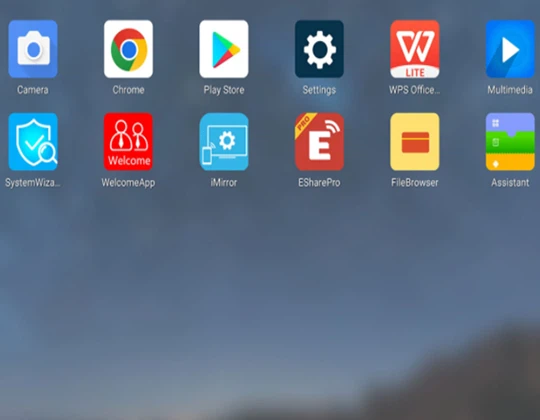

Integration With Other Software
In addition to the interactive whiteboard software that comes with it, our smart whiteboard is also compatible with other software, such as Google, WPS, Play Store, etc., to meet the diverse needs of users and improve meeting collaboration efficiency.
Interactive Whiteboard Industry Solutions

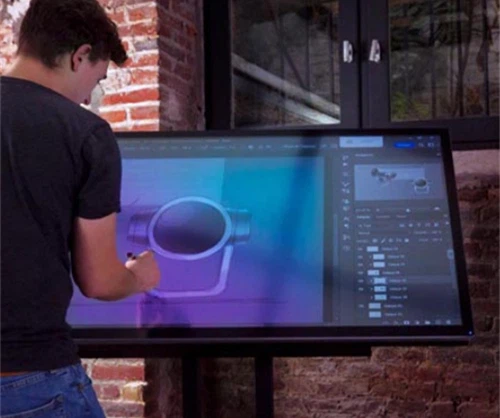

Interactive Whiteboard for Engineering And Design
In some architecture, engineering and design industries, our interactive whiteboards use 20-point touch, and the response time is very fast whether using fingers or stylus. Teams can freely draw designs on the whiteboard and brainstorm without hand-drawn sketches.
Interactive Whiteboard for Coporate Meeting
In company meetings, our interactive whiteboards can bring more efficient meeting collaboration to the team. You can communicate with remote members in a few minutes. You can also easily connect to various devices and collaborate on the screen. Most importantly, it will protect the security of your company's internal data.

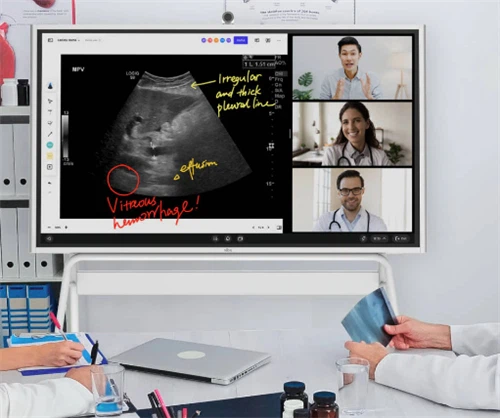

Interactive Whiteboard for Hospitals
In the hospital's consultation room, doctors can discuss complex cases together using a whiteboard, or study complex surgical plans with doctors from other hospitals through remote video conferencing, providing patients with more extensive and professional medical services.
Commercial Interactive Whiteboard Customer Cases

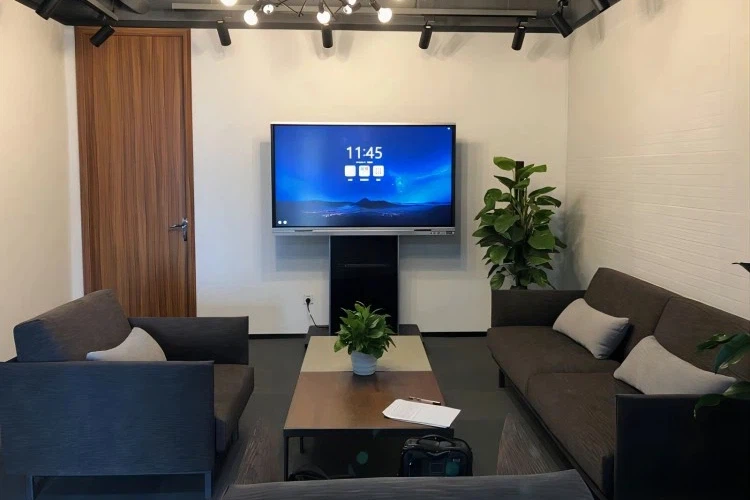

Distrii | Singaprore
Sime Darby Oils Morakot | Thailand

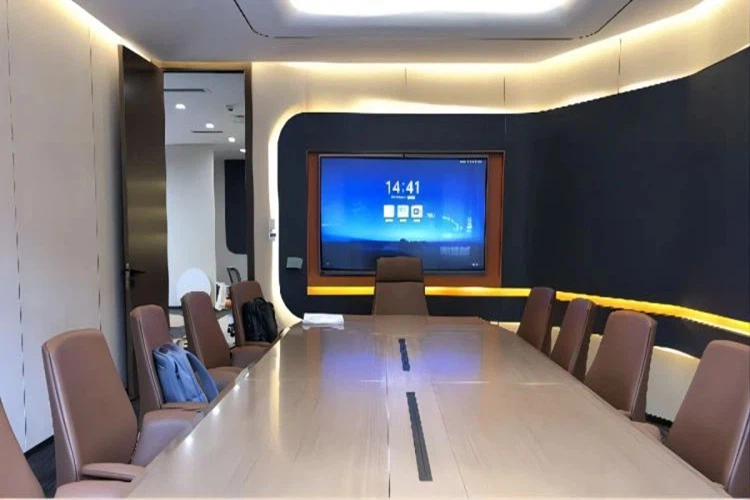

LPTIC | Libya

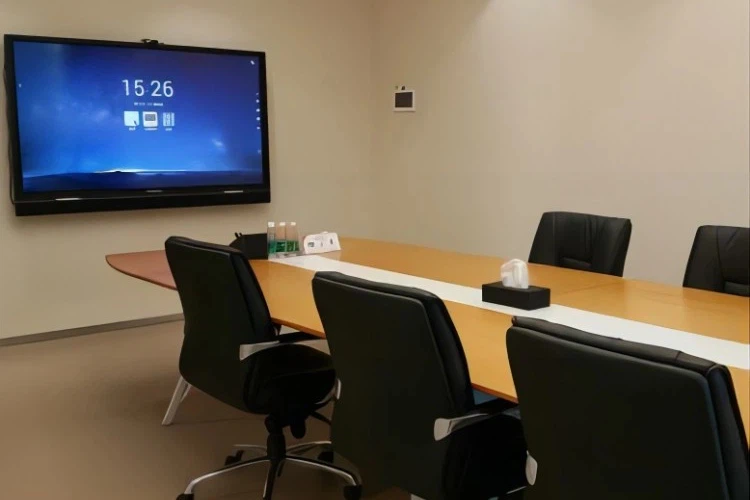

Lowe's Companies Inc | India

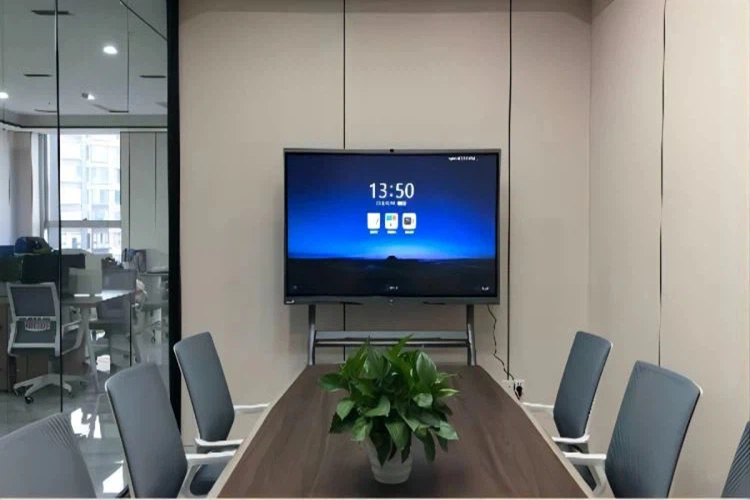

PT. Hutama Karya (Persero) | Indonesia
Why Choose HDFocus as Your Interactive Whiteboard Supplier
Customized Service
As an interactive whiteboard manufacturer focusing on R&D and customization, we can customize
the needs of customers according to different meeting scenarios, such as size, shell material,
Logo, etc., to meet the personalized needs of customers.
Learn More
One-stop Service
We have professional engineers and sales teams to provide customers with pre-sales and
after-sales services, and provide customers with online and offline product training. In addition,
we also provide a one-year warranty to solve product quality problems for customers.
Learn More
Quality Assurance
All our products have a complete testing process from raw materials to production assembly to
final delivery to ensure product quality. In addition, we will also conduct aging tests before
delivery to ensure that the product can operate for a long time.
Learn More
Qualification Certificate
All our products have passed CE, FCC, TELEC, ROHS, PSE, HDMI and ENERGY STAR certification,
providing customers with safe and reliable products.
Learn More
FAQ
Q: Can you design a complete conference solution for me?
Q: What is the minimum order quantity for your conference whiteboard?
Q: Is your product packaging reliable?
Q: What other customized services do you provide?
